BD BOX

BD BOX

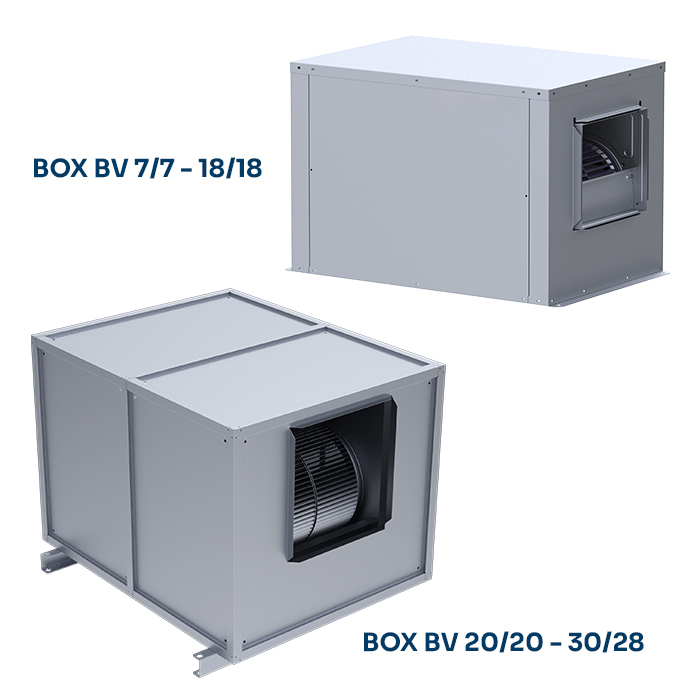

CENTRIFUGAL BELT DRIVE FAN WITH FORWARD CURVED IMPELLER IN SOUNDPROOF CABINET

MANUFACTURING FEATURES:

• Impellers made of polyamide reinforced with fiberglass up to size 12/12 (33/33). The rest of models are made of galvanized steel sheet.
• BD, BDC, BDP range fans assembles in soundproof cabinets with thermo-acoustic insulation, Bs1d0 fire class.
• Fan assembled on antivibration mountings.
• Supplied with motor, pulleys and belts.
• Connection gland included.
.•Squirrel cage asynchronous standard motor, IP-55 protection and rated class F insulation. Standard voltages 230/400V 50Hz for three phase motors up to 4kW and 400/690V 50Hz for higher powers.

APPLICATIONS:

Designed for inline installation, indoor or outdoor assembly, they are suitable for:
• Air renewal in buildings and industries.
• Industrial and professional kitchen hoods.
• Maximum working temperature: 60ºC.

UNDER REQUEST:
• 60Hz fans and special voltages.
• 2 SPEED MOTORS.
• Impellers made of galvanised steel sheet.
• LG0 position.

Name
BD BOX 7/7
BD BOX 9/9
BD BOX 10/10
BD BOX 12/12
BD BOX 15/15
BD BOX 18/18
BD BOX 20/20
BD BOX 22/22
BD BOX 25/25
BD BOX 30/28
