Model
DD 10/8 EEC

DD 10/8 EEC

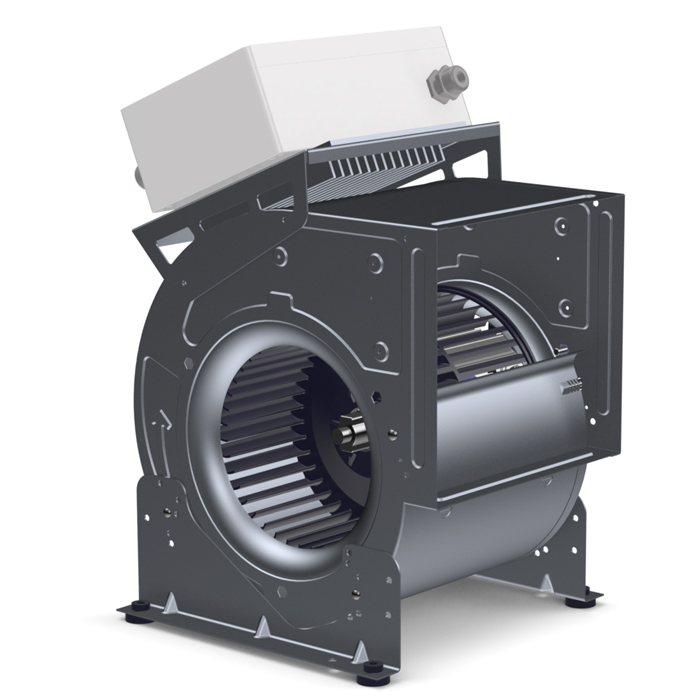

LOW PRESSURE CENTRIFUGAL FAN WITH DOUBLE INLET FORWARD CURVED IMPELLER DIRECT DRIVE WITH ELECTRONIC MOTOR

MANUFACTURING FEATURES
• Galvanised steel sheet housing.
• Polyamide impeller reinforced with fibreglass.
• Double inlet forward curved impeller.
• Supplied with mounting feet (included in price).
• Motor fixing with an exclusive system designed by Casals through flexible arms and silent blocks to avoid vibration. Flexible arms in compliance with the ROHS 2002/95/EC Directive (Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipments).
• Brushless motor made of high efficiency and permanent magnet and low noise level. Specially designed for fans with electronics and control on backside of the fan.
• Switching frequency of 16 KHz.
• Operating range: from 400 to 1200 or 2000rpm (depending on the models).
• Power supply: 220V + - 10%.
• Power Frequency: 50/60Hz.
• Operating temperature range: -20ºC +60ºC.
• Enclosed motor IP 55.
• Insulation class F.
• Speed ​​control through:
• 22 kOhms Trimmer.
• 0-10V external sensor.

APPLICATIONS
Designed for assembly in equipment:
• Ventilation boxes and air handling units.
• Centrifugal heaters.
• Industrial and professional kitchen hoods.

UNDER REQUEST
• Galvanized sheet impeller
• MBI assembled

Fan

Max flow
5860 m³/h
Weight
20 Kg

Motor

Power
1,5 kW
RPM Motor
1800 (max)
I max. 230 V
10
DD 10/8 EEC
Loading...
Design point
Loading...
Service point
Loading...
Alternative point

DD 10/8 EEC

Dimensions scheme
A B C D E F G H I J N
265 303 294 350 70.5 20 464 214 534 198 291

DD 10/8 EEC

Electrical scheme

DD 10/8 EEC

Model
INT 25 3P A
Information
SAFETY SWITCH

MANUFACTURING FEATURES

• Safety start-stop switches according to IEC 60947-1 and IEC 60947-3.
• IP65 and always equipped an auxiliary contact.
• Useful for switching off the current before handling the fan.

*Máx. thermal current air (A)

Model
RI 10/8
Information
OUTLET PROTECTION GUARD FOR FANS

MANUFACTURING FRATURES

• Galvanized protection grid on the outlet side to avoid the entry of objects and contact with the impeller.

Model
RM 10 (T80)
Information
PROTECTION GRID FOR DD FANS, MOTOR SIDE

MANUFACTURING FRATURES

• Motor side protection guard specially designed for low pressure direct driven fans.
• Manufactured in galvanised steel.

Model
RA 10
Information
INLET PROTECTION GUARD FOR CENTRIFUGAL FANS

MANUFACTURING FRATURES

• Inlet protection guard to avoid the entry of objects and contact with the impeller.
• Made of galvanised steel models 7,9, 10, 12 and 15. And the rest of models with polyester powder finishing coat.

Model
MBI 10/8
Information
OUTLET FLANGE FOR DD AND BD FANS

MANUFACTURING FEATURES

• To be installed in the outlet of low pressure fans (DD, BD) and made the connection to the duct easier.
• Made of galvanized seel.

UNDER REQUEST

• Possible spot welding on fans outlet.

Model
REGC
Information
SPEED CONTROLLER FOR EEC MOTOR

MANUFACTURING FEATURES

• Speed remote controller for EEC motors.
• Adjusts the flow rate in a range from 0 to 100% at a maximum distance of 10m.
• It can be recessed or mounted on a wall. Can be installed outdoors.
• Working temperature from 0 to 40ºC.

DD 10/8 EEC

Spare parts scheme
Nº Family Name Qty
3 TURBINE BD 10/8 x1
